CPU

• Intel Atom Z510 P

Chipset

• Intel US15W

DRAM

• 1 GB DDR2 400 MHz DRAM

Storage

• 1 x 2.5” SATA HDD
• 1 x m SATA Slot

Expansion slots

• None

OS Support

• Windows XP, Windows CE 5.0, XP Pro, XP Embedded

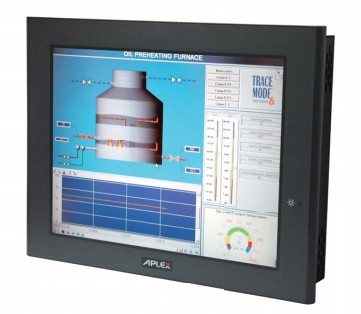

Display Type

• 8” TFT-LCD

I/O Ports

• 4x USB 2.0
• 1 x RJ-45 ports
• 1 x DB-9 (COM1, RS-232)
• 1 x DB-9 (COM2, RS-232/422/485, default RS-232)
• 1 x DC power input

Brightness

• 400 cd/m²

Resolution

• 800x600

View Angle

• H:130° / V:120°

Backlight Lifetime

• 40,000 hrs

Touch Screen

• Overlay Resistive Touch

Power Input

• DC 9-32V

Dimensions

• 231(W)x176(H)x57(D) mm

Weight

• 1.7kgs

Environmental Specification

• Operating: 0~50 °C
• Storage: -20~60 °C
• Storage Humidity:10~90% @40 °C non-condensing
• Certifi cate:CE/FCC Class A

Mounting Type

• Panel / VESA 75x75 Mount

Certifi cate

• CE/FCC Class A
