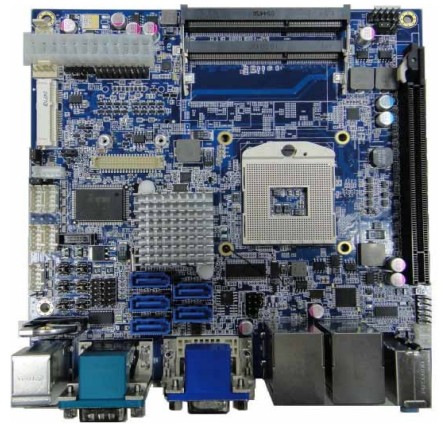

The KEMX-5000 is a Mini-ITX form factor industrial motherboard combining the latest Intel® Core™ i7/i5/i3/Celeron processors with the high integration of the Intel® HM55 chipset. The new architecture of Arrandale Processors enable the lowest power consumption and smallest form factor for thin client and fundamental use. Featured are DDR3-1066/1333 SO-DIMM up to 8GB, dual 18/24-bits LVDS, HDMI, DVI-D, 2x Gigabit Ethernet, 3x SATA, mini PCIe Expansion slot, 8x USB 2.0, 6x COM ports with Power Selection, HD audio, keyboard/mouse and CompactFlash. The KEMX-5000 is a compact, high performance industrial motherboard that is ideal for point-of-sales application.
Industrial Motherboard in Mini-ITX form factor with Intel® Core™ i7/i5/i3/Celeron processor and HM55 chipset
- Intel® Core™ i7/i5/i3/Celeron Processors
- Intel® HM55 Chipset
- Supports DVI-D, HDMI, VGA, 18/24-bit LVDS
- Two DDR3 SO-DIMM Socket, total up to 8 GB
- 1x Mini PCIe slot, 1x Compact Flash Socket
- 3x SATA, 8x USB 2.0, 2x GbE
- 6x COM ports, 8 bit in/8 bit out Digital IO
- Watchdog Timer, Hardware Monitor
- Intel® Core™ i7/i5/i3/Celeron Processors
- Intel® HM55
- 2x DDR3 1066/1333 SO-DIMM Socket, up to 8GB
- AMI PnP BIOS/TPM 1.2 supported
- 18/24-bit dual-channel LVDS
- 1x HDMI
- 1x DVI-D
- 1x VGA
- Realtek ALC888 HD audio codec onbaord
- One audio stack connector for Line-Out, Line-In and Mic-In on rear I/O
- One 4-pins pitch 2.54mm header for SPDIF supported
- One 2x5-pins pitch 2.54mm header for HD front panel audio supported
- One LM4838MTE 2Watts audio amplifier, Gain can be adjust by BIOS
- Two 2-pins pitch 2.54mm pin headers for Right/Left speaker out
- 1x SATA to IDE converter IC onboard for CF supported
- 1x CF socket supported
- Eight USB2.0 ports support
4x ports via two 2x5-pins 2.54mm pitch headers for internal.
- One 2x9-pins 2.54mm pitch header for 16-bits DIO supported
- One stack connector on rear I/O for PS/2 Keyboard and Mouse
- Six COM ports supported
1x box headers for COM2 ~ COM6
COM1 with RS422/485 supported
COM1 ~ COM6 with +12V & +5V supported, select by jumper
- One header for IrDA
- Buzzer onboard
- Two fans supported
1x 3-pin FAN for system
Fans speed control supported
- Two Gigabit Ethernet ports supported
1x GbE PHY (Intel82577LM) onboard
2x RJ-45 connectors w/z Gb transformer
(stack with dual USB connectors) on rear I/O
- One 24-pins standard ATX power connector for power input
- AT/ATX Supported
- 1x Mini PCIE slot onboard with mini-PCIE SPEC. V1.2 supported mSATA function fo BOM optional
- 1x PCIe x 16 slot supported
- ACPI 3.0b supported
- 1-255 step
- Mini-ITX (170 x 170 mm)
- Operation Temp: 0ºC - 60ºC
- Storage Temp.: -10ºC - 85ºC
- Humidity: 0% - 90%
- CE, FCC Class A
