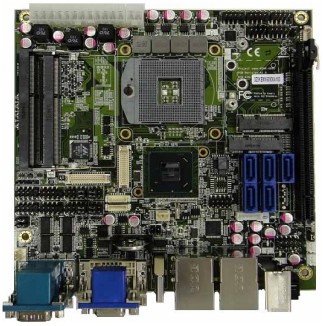

The KEMX-6000 is a Mini-ITX form factor industrial motherboard combining the latest 2nd generation Intel® Core™ i7/i5 processors with the high integration of the Intel® QM67 chipset. Featured are DDR3 1066/1333 SO-DIMM up to 8GB, 24-bit LVDS, HDMI, DVI-D, VGA, 2x Gigabit Ethernet, 5x SATA, 1x PCIE x 16, mini PCIe Expansion slot, 2x USB 3.0, 8x USB 2.0, 6x COM ports with Power Selection, HD audio, keyboard/mouse and CompactFlash. The KEMX-6000 is a compact, high performance industrial motherboard that is ideal for a variety of applications.
Industrial Motherboard in Mini-ITX form factor with Intel® Core™ i7/i5 Processors and QM67 Express Chipset
- Intel® Core™ i7/i5/ Processors
- Intel® QM67 Express Chipset
- 1x VGA, 1x DVI-D, 1x HDMI, and 2x 24-bit dual-channel LVDS
- 2x Dual Channel DDR3 SO-DIMM Socket, total up to 8 GB
- 1x PCIE x 16, 2x Mini PCIe slot, 1x Compact Flash Socket
- 5x SATA, 2x USB 3.0, 8x USB 2.0, 6x COM Ports
- 2x GbE, iAMT 7.0 supported
- Watchdog Timer, Hardware Monitor
CPU Support
Six more USB 2.0 ports via four 2x5-pins 2.54mm pitch headers for internal
Four 2x5-pins pitch 2.54mm headers for COM3 ~ COM6
COM3 & COM4 with +12V & +5V supported, select by jumper
COM5 & COM6 with RS-232 only.
1x 3-pin FAN for system
Fans speed control supported
One 1x 6-pins pitch 1.25mm wafer connector for 2G/3G SIM Card module supported
- 2nd Generation Intel® Core™ i7/i5 Processors
- Intel® QM67 Express Chipset
- 2x DDR2 1066/1333 SO-DIMM Socket, up to 8GB
- AMI PnP BIOS/iAMT 7.0 supported
- 2x24-bit dual-channel LVDS
- 1x HDMI
- 1x DVI-D
- 1x VGA
- Realtek ALC888 HD audio codec onbaord
- One audio stack connector for Line-Out, Line-In and Mic-In on rear I/O
- One S/PDIF connector on rear I/O for S/PDIF out supported
- One 2x5-pins pitch 2.54mm headers for front panel audio supported
- One 2Watts audio amplifier onboard
- Two pitch 2.0mm wafer connectors for Right/Left speaker out
- Five 7-pins SATA connectors supported;Raid 0/1/5/10 supported;One CF socket supported
- Two USB 2.0 ports stack with RJ-45 connector on rear I/O
- Eight USB2.0 ports support
Six more USB 2.0 ports via four 2x5-pins 2.54mm pitch headers for internal
- One 2x5-pins 2.54mm pitch header for 8-bits DIO supported
- One 6-pin pitch 2.0mm wafer connector for PS/2 Keyboard/Mouse
- Six COM ports supported
Four 2x5-pins pitch 2.54mm headers for COM3 ~ COM6
COM3 & COM4 with +12V & +5V supported, select by jumper
COM5 & COM6 with RS-232 only.
- One 1x5-pins pitch 2.54mm header for IrDA supported
- Buzzer onboard
- TPM1.2 supported
- Two fans supported
1x 3-pin FAN for system
Fans speed control supported
- 2x RJ-45, Gigabit Ethernet
- Intel GbE PHY 82579 and 82574 GbE controller onboard
- One 24-pins standard ATX power connector for power input
- One 4-pins ATX power connector for CPU core power +12V & GND input
- AT/ATX Supported
- Two Mini-PCIe slot supported
One 1x 6-pins pitch 1.25mm wafer connector for 2G/3G SIM Card module supported
- One PCIe x 16 slot supported
- ACPI 3.0b supported
- 1-255 step
- Mini-ITX (170 x 170 mm)
- Operation Temp: 0ºC - 60ºC
- Storage Temp.: -10ºC - 85ºC
- Humidity: 0% - 90%
- CE, FCC Class A
