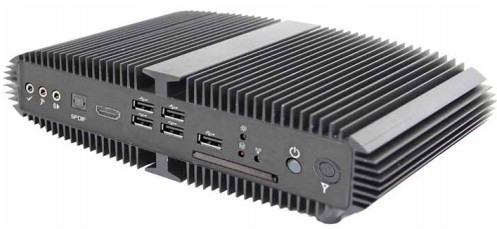

The KUBE-8080 is a surprisingly affordable, space-saving box player with powerful computing and graphic performance to turn your living room into home theater with ease. Featuring the latest Intel® Huron River platform with intel® QM67 chIpset, integrated the industrial X86 SBC and a rugged design make it quick to deploy and easy to manage your digital signage network.
- Intel Huron River Platform with QM67 Chipset
- Fanles and Aluminum Housing Design
- iAMT 7.0 Supported
- 2x DDR3 1066/1333 SO-DIMM, up to 8 GB
- 1x DVI-I, 1x HDMI, 1x DP, 2x GbE and 5.1 Channel Audio Output
- SATA HDD or SSD, 1x eSATA & USB Combo Connector
- 1x CF Slot and 5x USB
- Optional Wireless Ethernet or 3G Module
Construction
- Aluminum Housing
- Intel® Huron River Platform
- Intel® Cor i3/i5/i7 Procssors (2nd Generation) and Intel® QM67
- 2x DDR3 1066/1333 SO-DIMM up to 8GB
- Front I/O 3x 3.5mm Phone Jack, support 5.1 channel audio output
- Rear I/O 1x DC JACK for DC19V single power input
1x S/PDIF Output
1x eSATA and USB 2.0 combo connector
4x USB 2.0
1x USB 3.0
1x CF Slot
1x Power LED
1x Storage status LED (HDD/Card reader)
1x Wifi status LED
1x DVI-I for DVI-D or VGA output
1x HDMI
1x DP
2x RJ-45 GbE port
1x COM Port support RS-232/422/485 (Offer +5V/+12V selection)
1x Wifi external antenna
1x 3G external antenna
- 1 x 2.5” SATA HDD or SSD
- 2 x mini PCIe slot (Optional for 3G/WiFi+Bluetooth module)
- 1x SIM card slot (for 3G appliance) support user accessible
- Input: 100-240 VAC, 50-60 Hz
- Output: 19V/3.95A, 75W
- Fanless and Internal Heat Pipes
- Operating: 0°C to 45°C, 0%-90%, non-condensing
- Storage: -10°C to 80°C, 0%-90%, non-condensing
- 260 x 153.3 x 57.8 mm (WxDxH)
- 3 Kg
- Wall-mount
- CE, FCC Class A
