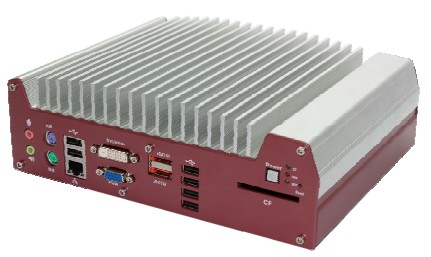

Supports Intel Core i5/i7 processors. High-performance, low-profile design, extended temperature operation, and uniquely industrial I/O set this versatile fanless embedded controller apart. Ideal for automotive, industrial, or networking applications.
- Processor: Intel® Core™ i5-520M (2.4 GHz, 3MB Cache)
- Chipset : Intel® HM55 Platform Controller Hub
- Graphics: Integrated Intel® HD Graphics Controller
- Memory Type:1x 204-pin SO-DIMM socket, up to 4GB DDR3 1066MHz SDRAM
Processor
- Intel® Core™ i5-520M (2.4 GHz, 3MB Cache)
- Intel® HM55 Platform Controller Hub
- Integrated Intel® HD Graphics Controller
- 1x 204-pin SO-DIMM socket, up to 4GB DDR3 1066MHz SDRAM
- 3x Intel® 82574L GbE ports
- 1x DB-15 connector for analog RGB, supporting 2560x1600 resolution
- 1x DVI-D connector for DVI/HDMI output, supporting
- 1920x1080 (HDMI output) resolution, or 1600x1200 (DVI output) resolution
- 1x software-programmable RS-232/422/485 (COM1)
- 3x RS-232 (COM2 ~ COM4)
- 6x USB 2.0 ports
- 1x PS/2 keyboard and 1x PS/2 mouse
- 1x Mic-in and 1x Speaker-out
- 1x Internal SATA port for 2.5” HDD/SSD installation
- 2x eSATA ports for storage expansion
- 1x Type I CF socket
- 1x internal mini PCI Express socket with SIM socket
- Built-in 8~26 VDC DC input
- 1x 4-pin pluggable terminal block with remote on/off control
- 1x DC jack (ø2.5) for AC/DC adapter input
- 240 mm (W) x 195 mm (D) x 78 mm (H) (9.4” x 7.7” x 3.1”)
- 2.7 kg (6 lbs) (including 2.5” HDD and DDR3 SODIMM)
- Wall-mount by mounting bracket
- Ambient with air flow (0.5 m/s, or 1.8 Km/hr), 100% CPU loading -25°C ~ 70°C
- Ambient without air flow, 100% CPU loading -25°C ~ 60°C **
- -40°C ~85°C
- 10%~90% , non-condensing
- Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
- Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to
- CE/FCC Class A, according to EN 61000-6-3 & EN 61000-6-1
