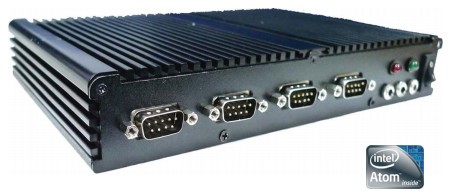

The QBOX-2060 is a fanless BOX PC is ideal for space critical applications. This embedded hardware platform is designed with Intel® Atom™ D2700 Processor which provides with excellent performance. The system is supported with Intel® NM10 Express chipset, and DDR3 SO-DIMM up to 4GB. Featured are 1x 2.5” SATA HDD or SSD, 1x mini-PCIe slot, 2x GbE, 4x USB 2.0, 1x DVI-I, 1x HDMI, 4x COMs. The QBOX-2060 provides high reliability rugged case not only for great protection from EMI, cold and heat, but also integrated with passive cooling design for quiet fanless operation such as Transportation, Surveillance and Automation.
- Intel® Atom™ Processor D2700
- Intel® NM10 Express Chipset
- Intel® Graphics Media Accelerator 3650
- DDR3 800/1066 MHz SODIMM up to 4GB
- 1xDVI-I, 1xHDMI, 2xGbE, 4xCOM, 4xUSB and Audio
- 1x 2.5” SATA HDD or SSD, 1x Mini-PCIe slot, 1x mSATA slot supported
- Fanless design
CPU
- Intel® Atom™ Processor D2700 (1M Cache, 2.13GHz)
- Intel® NM10
- 1x Single channel DDR3 800/1066MHz SO-DIMM up to 4 GB
- AMI Plug & Play SPI BIOS
- Intel® Graphics Media Accelerator 3650
- 1x HDMI,1x DVI-I
- 2x Gigabit Ethernet (Realtek RTL8111E)
- PXE/WOL supported
- Realtek ALC662 HD Codec with 2W Audio Amplifier
- Mic-In, Line-In, Line-Out supported
- 1x 2.5” SATA HDD or SSD
- 1x mSATA
- 1x 8-bits programmable DIO
- 4x USB 2.0
- 4x COM [RS-232] ports with power selection on COM1~4
- ( RS-232/422/485 selection on COM1)
- 1x Mini-PCIe slot (SIM Card socket supported)
- Operating Voltage, CPU temperature
- 1-255 step, can be set with software on Super I/O
- 210x35x135mm (WxHxD)
- Windows 7
- DC 12V Input
- 0°C - 50°C
- -20°C to 80°C
- 0°C - 95°C
- CE/FCC Class A
