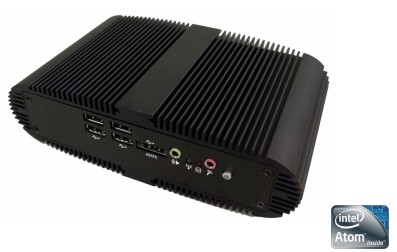

The QBOX-2600 is a fan-less Box PC is ideal for space critical applications. This embedded hardware platform is designed with Intel® Atom D2700 Processor which provides with excellent performance. The system is supported with Intel® NM10 Express chipset, and DDR3 SO-DIMM up to 4GB. Featured are an eSATA, 1x 2.5” SATA HDD, 1x mini-PCIe slot, GbE, USB 2.0, VGA, HDMI, DP, 2x COMs and Digital I/Os. The QBOX-2600 provides high reliability rugged case not only for great protection from EMI, cold and heat, but also integrated with passive cooling design for quiet fan-less operation such as Transportation, Surveillance and Automation.
- Fan-less Design and Compact Sized
- Intel® Cedarview-D Atom D2700 Processor
- Intel® NM10 Express Chipset
- Support DDR3 800/1066 MHz SODIMM up to 4GB
- Support 1xVGA, 1xHDMI, 1xDP, 1xGbE, 1xeSATA, 4xUSB and Audio
- Support 2x COMs and Digital I/Os (optional)
- Support 1x 2.5” SATA HDD
Construction
- Aluminum extrusion
- Intel® Cedarview-D Atom D2700 (1M Cache,2.13 Ghz)
- Intel® NM10 Express Chipset
- DDR3 800/1066 SO-DIMM up to 4 GB
- 1x Push button (w/LED) for power on/off
- 1x Phone Jack for Line-Out
- 1x Phone Jack for MIC-In
- 1x Power LED (Green)
- 1x HDD LED (Red)
- 4x USB2.0
- 1x eSATA/USB Combo connector
- 1x DC JACK for power input
- 1x RJ-45, GbE port
- 1x DP
- 1x DB-15 VGA
- 1x HDMI
- 2x DB-9 (RS-232/422/485)
- 1x Digital I/O (optional)
- 1x Reset CMOS
- 1x 2.5” SATA HDD
- 1x Mini PCI Express slot (for optional WiFi or 3G module)
- 1x SIM card slot (Optional for 3G)
- Input: 100-240 VAC, 50-60 Hz
- Output: 30W, +19VDC / 1.58A output
- Fanless and Internal Heat Pipes
- Operating: 0°C to 40°C, 0%-90%, non-condensing
- Storage: -20°C to 80°C, 0%-90%, non-condensing
- 184 x 56 x 110 mm (WxHxD)
- 1600 g
- Desktop, VESA mount, Din Rail mount
- CE/FCC Class A
