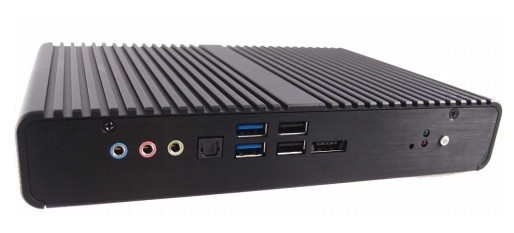

The QDSP-5000 Series is a fanless Box PC ideal for space critical applications. This embedded hardware platform features Intel® Core Processor i7-3517UE, Intel® QM77 Express chipset, and DDR3 1333/1600 SO-DIMM. It comes with a SSD, 3x Mini-PCIe slots, HDMI, 2x DP, 2x USB2.0, 4x USB3.0, 2x COM, 2x GbE LAN, and Audio. The QDSP-5000 provides high reliability rugged case not only for great protection from EMI, cold and heat, but also integrated with passive cooling design for quiet fanless operation such as Digital Signage.
- Intel® Core Processor i7-3517UE
- Intel® QM77 Express Chipset
- DDR3 1333/1600 MHz memory support up to 8 GB
- 1x HDMI, 2x DP, 1x S/PDIF Output and Clear CMOS
- 2x USB2.0, 4x USB3.0, 2x COM, 2x GbE LAN and Audio
- 1x SSD, 3x Mini-PCIe slots
- Fanless design
CPU Support
- Intel® Core Processor i7-3517UE (4M Cache, up to 2.80 GHz)
- Intel® QM77 Express Chipset
- 2x Single Channel DDR3 1333/1600MHz SODIMM support (8GB max)
- AMI Plug & Play SPI BIOS
- Realtek ALC662 HD Codec w/ 2W Audio Amplifier, Mic-In, Line-In, Line-Out
- 1x S/PDIF Output
- 1x eSATA and USB 2.0 combo supported
- 2x USB 2.0
- 2x USB 3.0
- 1x Power Button with Power LED
- 1x Storage HDD status LED ( RED )
- 1x Wifi /3G status LED ( Green )
- 1x Clear CMOS
- 1x DC JACK
- 1x HDMI
- 2x DP
- 2x RJ-45 GbE ports (Realtek RTL8111E/ Intel 82579 )PXE / WOL supported
- 2x USB 3.0
- 2x COM Ports support RS-232/422/485
- 1x SSD
- 1x eSATA and USB 2.0 combo connector
- 3x Mini-PCIe slots (SIM Card socket supported)
- Operating voltage, CPU temperature
- 1-255 step, can be set with software on Super I/O
- DC 19V Input
- Windows 7
- 220 x 153.3 x 38 mm (W x D x H)
- Operating: 0°C to 40°C, 0%-90%, non-condensing
- Storage: -20°C to 80°C, 0%-90%, non-condensing
- CE/FCC Class A
