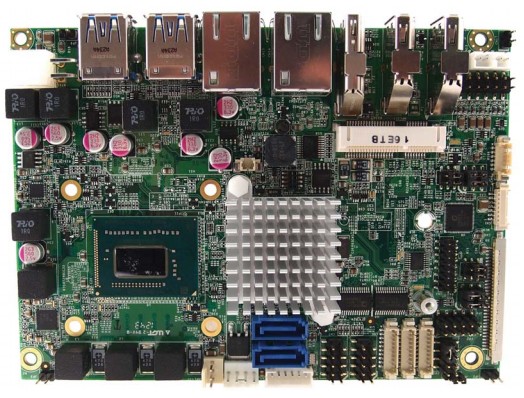

The KEEX-7100 Intel® Embedded Compact Extended Form Factor with 3rd generation Intel® core i5/i7 processor
Industrial Embedded SBC with Intel® 2nd Generation 827E/ 847E Processor
- KEEX-7100: Intel® core i5-3610ME + QM77 Express Chipset
- KEEX-7101: Intel® core i7-3517UE + QM77 Express Chipset
- 1x SO-DIMM DDR3 supported
- 2x DP, 2x Dual Channel 24-bit LVDS, 1x VGA, 1x HDMI
- 2x SATA, 1x mSATA (Optional )
- 2x GbE, 4x USB3.0, 4x USB 2.0, S/PDIF, and 2x COM
- 1x mini-PCIe Socket ( SIM card support )
- 8-bit Digital I/O supported (4-bit input/4-bit output)
- Watchdog Timer, Hardware Monitor, TPM ( Optional)
CPU Support
- KEEX-7100 : Intel® Core i5-3610ME processors
- KEEX-7101 : Intel® Core i7-3517UE processors
- Intel® QM77 Express Chipset
- 1x DDR3 SO-DIMM supported
- AMI uEFI BIOS
- 1x 64Mb SPI Flash ROM
- 1x VGA
- 2x Dual channel 24-bit LVDS
- 2x DP Connectors
- 1x HDMI
- * Switch DP2 to LVDS2 by BIOS setting. ( BIOS Default : DP2 )
- 2x SATA connectors supported
- 1x mSATA Socket ( Optional)
- 4x USB 2.0 ( 2x headers supported)
- 4x USB 3.0 type A Connectors
- 2x COM ( RS-232/422/485 for COM 1, RS-232 for COM 2)
- 1x PS/2 Keyboard and Mouse
- 1x DIO (4-bit in and 4-bit out)
- TPM supported ( Optional )
- 2x RJ-45 Connectors for Dual GbE LAN
- 1x header for Line-In, Line-Out and Mic-In
- 1x header for S/PDIF
- 2x Wafers for 2W Speaker
- 1x +12VDC Power Input
- 1x +12VDC & +5VDC HDD Power output
- ATX/ AT Mode Supported
- 1x mini-PCIe socket
- 1x wafer for SIM card support
- 1x 12VDC FAN support with speed control
- Programable WDT to generate System reset event
- Voltage and System temperature monitoring
- Windows 7 / Windows 8
- Intel® ECX Form Factor (105 x 146 x 1.5 mm)
- Operation Temp: 0ºC - 60ºC
- Storage Temp.: -20ºC - 80ºC
- Humidity: 0% - 95%
- Pather Point intergrated RTC
- CE, FCC Class A
