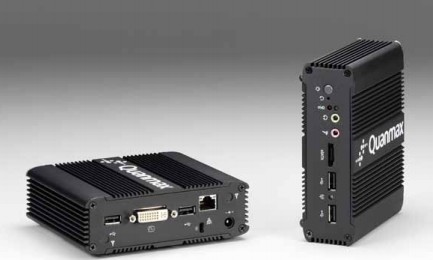

The QBOX-1000 is a fan-less Box PC with a volume of just 0.6-liter that is ideal for space critical applications. This embedded hardware platform is designed with Intel® Atom N270 Processor which provides with excellent performance enabled by next- generation 45nm Process Technology. The system is supported with Intel® 945GSE / ICH7-M chipset, and DDR2 SO-DIMM up to 2GB. Featured are a 2.5” SATA hard drive bay, eSATA, Internal Compact Flash Type II slot, GbE, USB 2.0 and DVI-I. The QBOX-1000 provides high reliability rugged case not only for great protection from EMI, cold and heat, but also integrated with passive cooling design for quiet fan-less operation such as Digital Signage, Gaming, Transportation, Surveillance, Automation and Thin Client.
- Fan-less Design and 0.6-Liter Compact Sized
- Intel® Atom Processor N270
- Intel® 945GSE + ICH7-M
- Support DDR2 533 SODIMM up to 2GB
- Support 1x DVI-I, 1x GbE, 1x 2.5” SATA HDD, 1x eSATA, 4x USB and Audio
- Optional CompactFlash Socket and Wireless Ethernet
- Support up to 1080P with add-on HD decoding module
- Aluminum extrusion
- Proprietary motherboard, Intel® Atom N270 Processor , 945GSE / ICH7-M
- DDR2 533 SO-DIMM up to 2GB
- 1x Phone Jack for Line-Out
- 1x Phone Jack for MIC-In
- 1x Push button for power on/off
- 1x Push button for reset
- 1x POWER LED
- 1x HDD LED
- 1x Wifi LED
- 2x USB2.0
- 1x eSATA connector Rear I/O panel
- 1x DC JACK
- 1x DVI-I connector for CRT & DVI output
- 2x USB2.0
- 1x RJ-45, GbE port
- 2x WLAN Antenna (optional)
- 2 x 2.5" SATA HDD (default)
- 1 x internal CF socket (optional)
- 1 x PCIe x 16 and 1 x PCI slot
- Input: 100-240 VAC, 50-60 Hz
- Output: 30W, +19VDC/1.58A output
- +9V ~ +24V
- 20W (without USB and eSATA devices)
- 1 x Mini PCI-Express Socket (for optional WiFi)
- Fanless and Internal Heat Pipes
- 130 x 40 x 110 mm (WxHxD)
- Wall-mount, VESA-mount
- 750 g
- 0°C to 40°C, 0%-90%, non-condensing
- -20°C to 80°C, 0%-90%, non-condensing
- Kensington Lock support
- CE/FCC Class B
